Managing complicated research workflows in R with {targets}

Eric R. Scott

2025-02-26

CCT Data Science

https://datascience.cct.arizona.edu/

We offer:

• Workshops

• Drop-in hours support

• Incubator projects for ALVSCE

• Collaboration on funded projects

Join our mailing list!

Before we get started

You’ll need the following R packages today:

#For making `targets` work:
library(targets)
library(tarchetypes)
library(visNetwork)
library(crew)

#For our data wrangling and analysis:
library(dplyr)
library(ggplot2)
library(janitor)
library(car)
library(broom)

#for installing demos and course materials:
library(usethis)

To paste into chat
install.packages(c("targets", "tarchetypes", "visNetwork", "crew", "dplyr", "ggplot2", "janitor", "car", "broom", "usethis"))

Learning Objectives

• Understand what problems targets (and workflow managers in general) solve

• Be able to set up a simple project using targets, view the dependency graph, and run the workflow

• Write a (good enough) custom R function

• Have an awareness of the possibilities: parallelization, cloud storage, iteration, Bayesian analyses, geospatial targets

• Know where to go for help with targets

Part 1: Context

Moving Toward Reproducibility

Working toward reproducible analyses benefits:

• You in the future

• Your collaborators

• The greater community

Image from: Illustrations from the Openscapes blog Tidy Data for reproducibility, efficiency, and collaboration by Julia Lowndes and Allison Horst

How many have taken a workshop on reproduciblity?

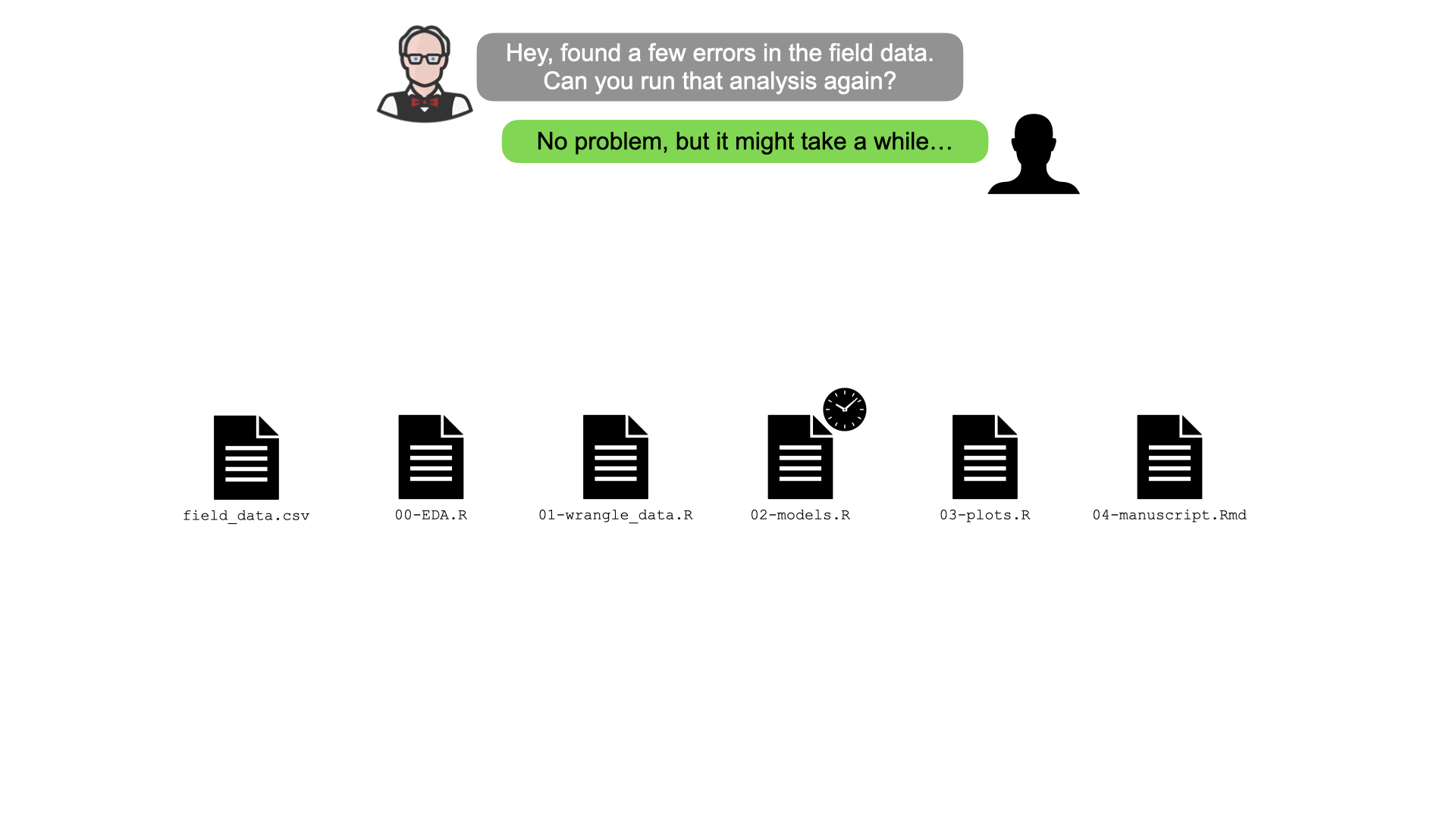

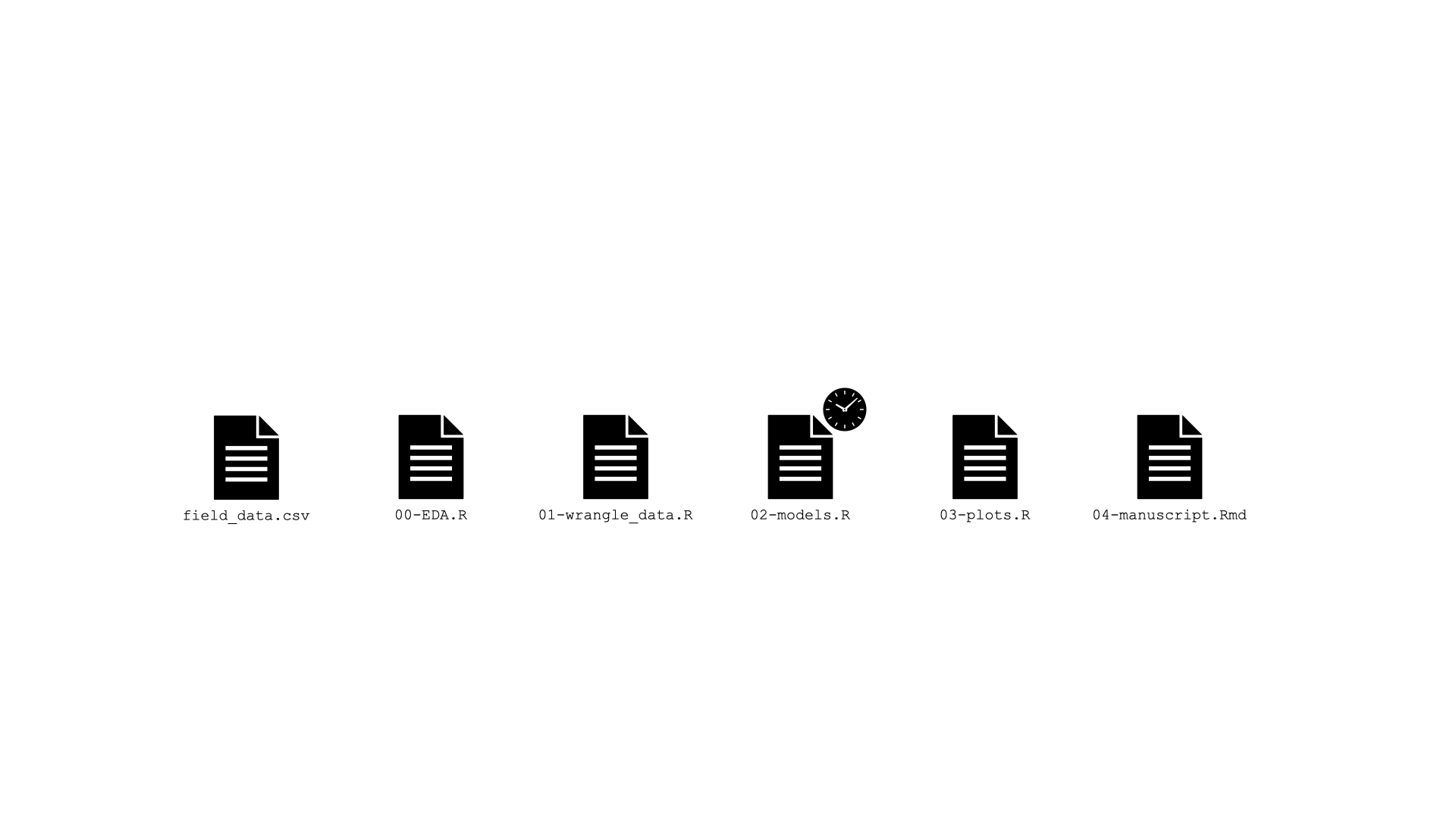

Scenario 1:

You have your files organized and numbered in the order they should be run! Great! Note that 02-models.R takes hours to run, so you’d like to avoid re-running that as much as possible.

Ok, it’s fine, we prepared for this!

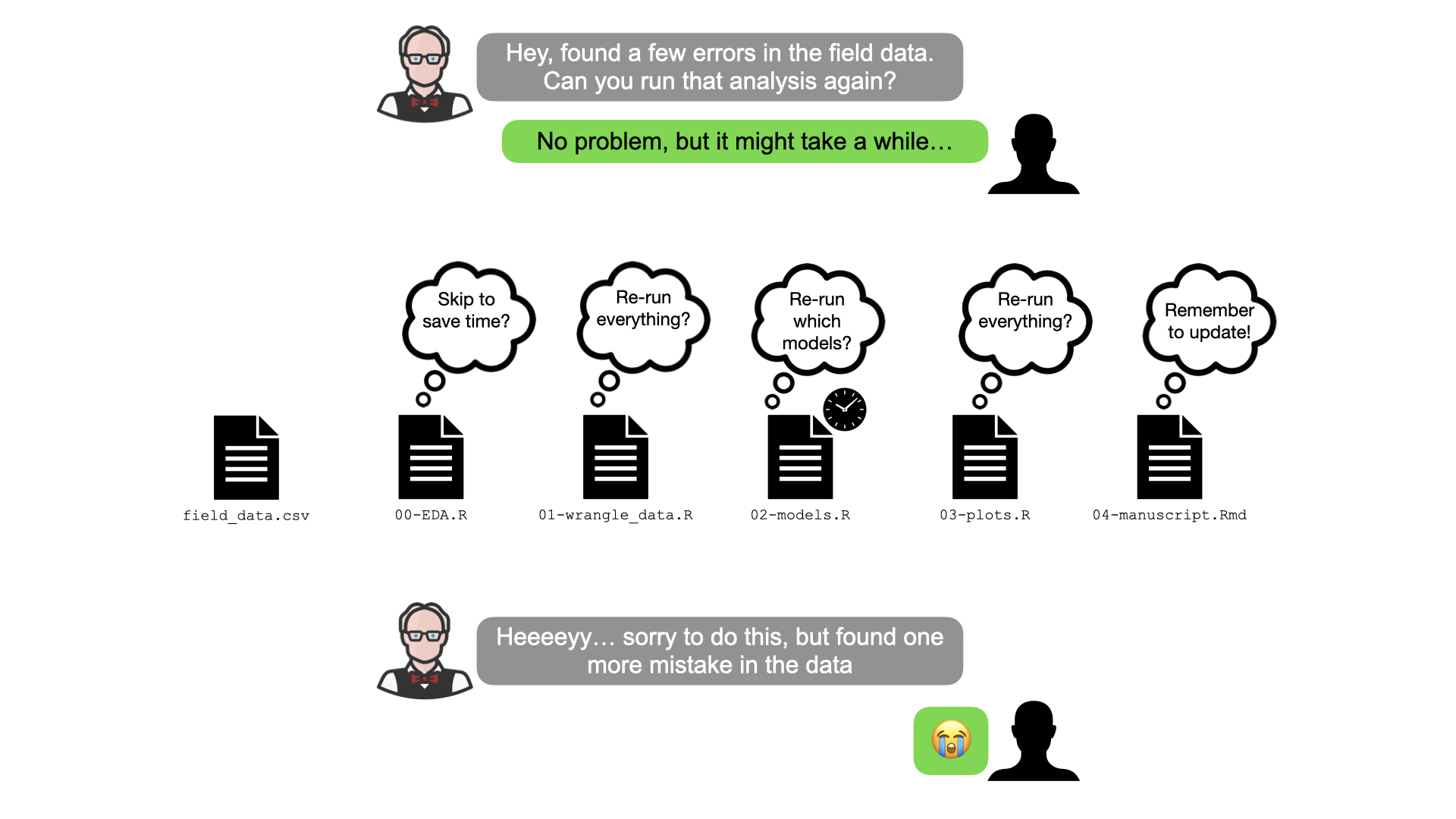

The problem is it is unclear which steps in the workflow are actually affected by the change in the upstream field data. You can’t tell if that change is even making it to the models and plots your R code creates.

And the process inevitably repeats.

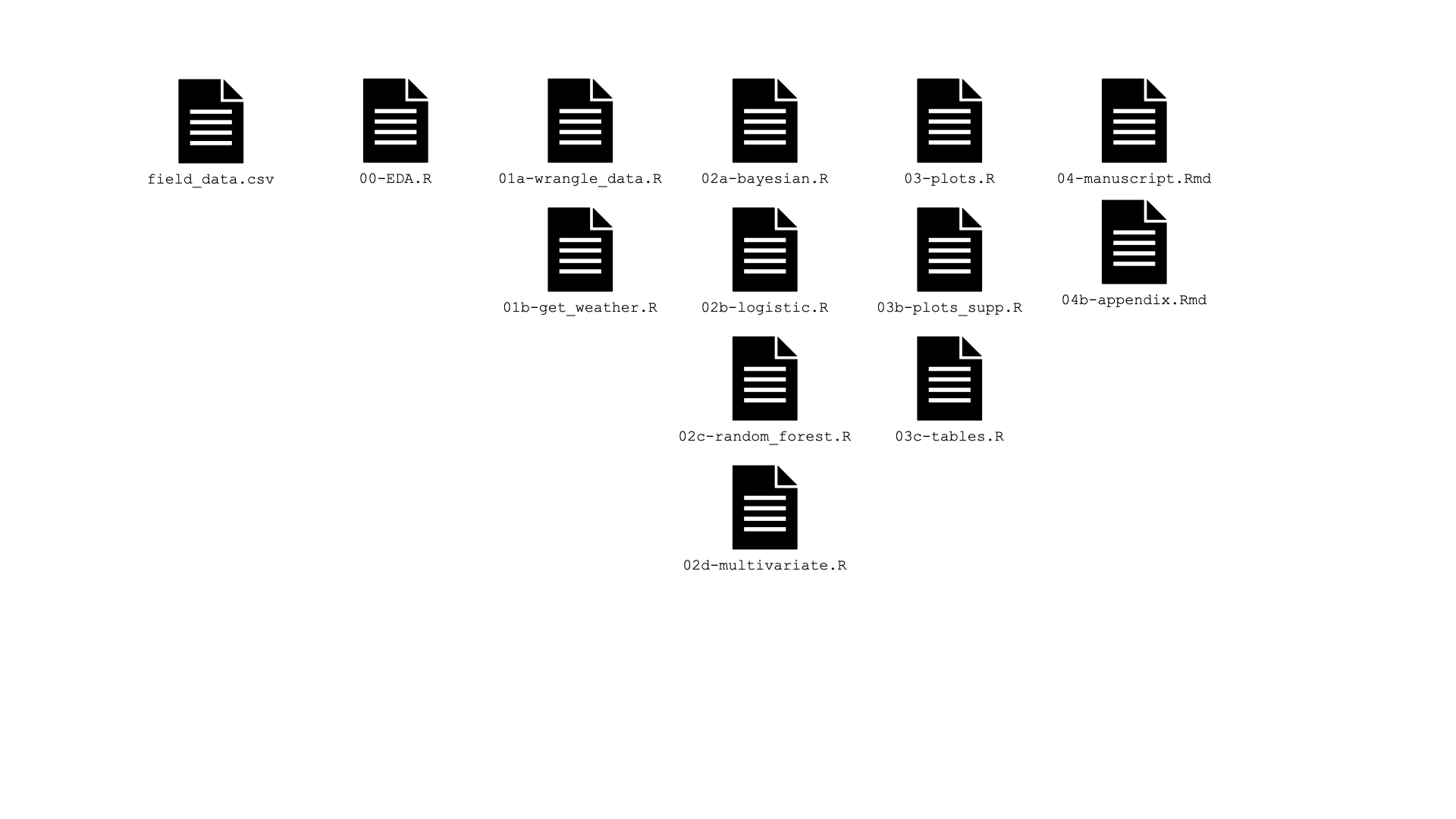

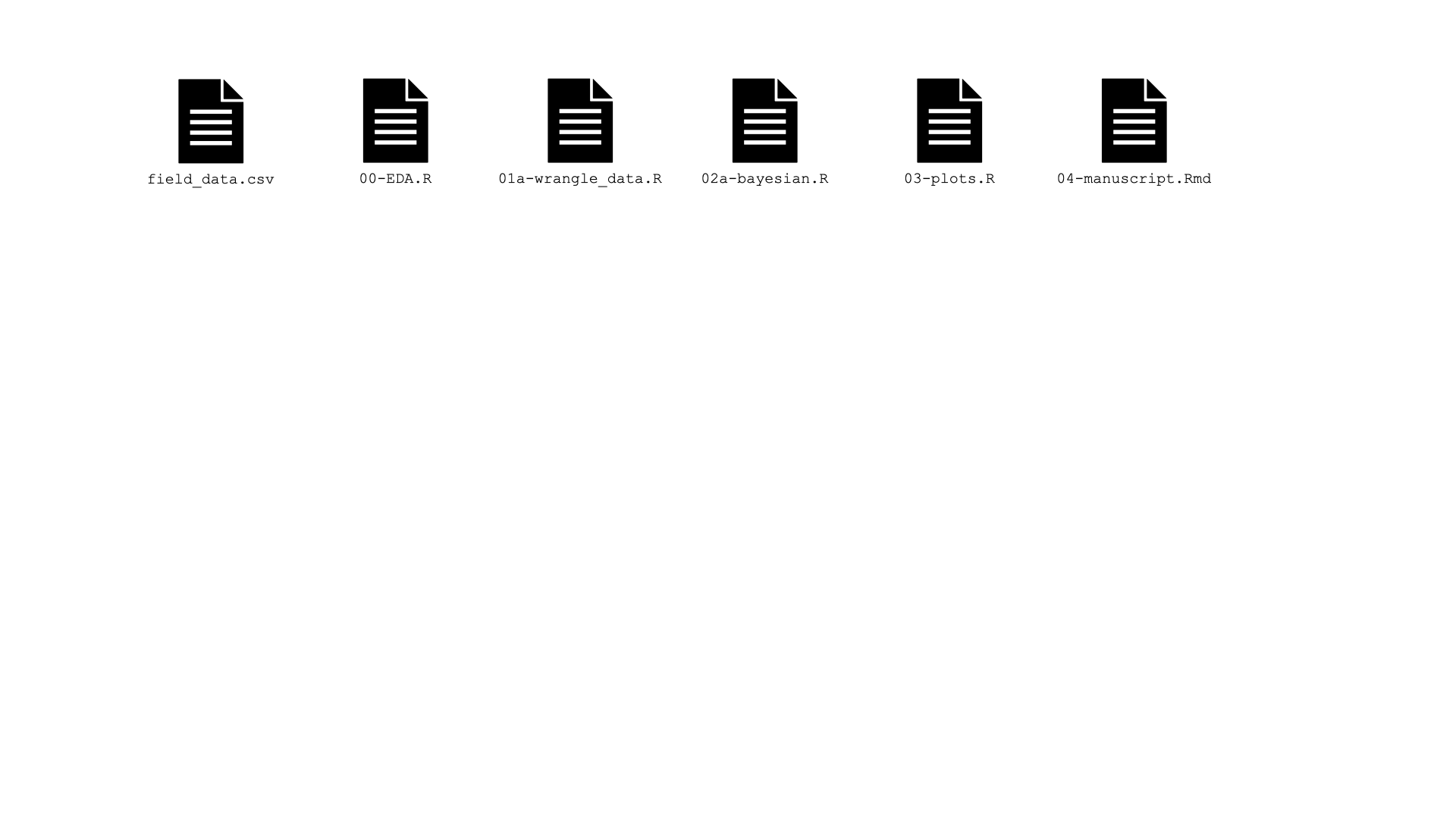

Scenario 2: Same starting point as scenario 1

…but then it gets complicated. You need to bring in additional data sources, collaborators are interested in comparing multiple methods of analyzing your data, you end up creating more plots and tables, etc.

Now your numbering system starts to become less useful. When you need to update something, it’s hard to remember which scripts exactly you need to re-run because it’s not obvious how they are related anymore.

Workflow management

• Automatically detect dependencies

• Run your entire analysis with one master command

• Skip steps that don’t need to be re-run

• Scaleable

Similar to make, nextflow (language agnostic), or snakemake (for Python)
scaleable = able to run with multiple cores, on HPC, using cloud storage

Part 2: Demonstration

Demo

To install a demo targets pipeline, run the following R code and follow the prompts:

usethis::use_course("cct-datascience/targets-demo")

The workflow is defined in the _targets.R file. We will talk about how to make this file in detail in a bit, but for now I just want you to try visualizing and running the workflow.

In this new project, try the following:

library(targets)
tar_visnetwork() # view dependency graph
tar_make() # run the pipeline
tar_visnetwork()
tar_read(lm_full) # view the "lm_full" target

You could also run tar_make() a second time to see that all the steps get skipped because they are up to date.

Now, in R/fit_models.R, change the response variable from flipper_length_mm to bill_length_mm and run tar_visnetwork() again.

Notice that only steps “downstream” from the model are out of date. If you run tar_make() again, only those steps are re-run.

Ask for questions!

Working with targets

• The result of each step is stored as an R object¹ in _targets/

• Everything that happens to make that target is written as a function

1. The default is to save targets as .rds files, but other options are available.

Anatomy of a targets project

1. _targets.R
   • Configure and define workflow
2. R/
   • R script(s) with custom functions
3. _targets/

   1. Generated by tar_make()

   2. Contains targets saved as R objects

   3. Should not be tracked in version control

Investigate these in the demo project if you haven’t already

Part 3: Refactoring Exercise

Refactoring a project to use targets

refactor

/rēˈfaktər/

verb

1. restructure (the source code of an application or piece of software) so as to improve operation without altering functionality.

First, let’s start with a “traditional” R analysis project. Download and take a look around:

usethis::use_course("cct-datascience/targets-refactor")

03:00

Refactoring a project to use targets

1. use_targets() to set up infrastructure including _targets.R
2. Add package dependencies to tar_option_set()
3. Convert R script(s) to functions
4. Write targets
5. Run tar_make()
6. Debug

We’re going to walk through this process together

1. use_targets()

Exercise

Run use_targets() and open the _targets.R file it generates

library(targets)
use_targets()

Let’s take a moment to look through _targets.R together

2. Package dependencies

Exercise

Figure out what packages are needed and add them to tar_option_set() in _targets.R.

_targets.R

tar_option_set(
  packages = c(
    "tidyverse",
    "lubridate",
    #add more packages here
    ),
  format = "rds"
)

Tip

This would be a good time to install any necessary packages with install.packages() also!

02:00

Custom functions in R

Functions in R are created with the function() function

add_ten <-        #name of function
  function(x) {   #argument names and defaults defined here
    x + 10        #what the function does
  }

add_ten(x = 13)

[1] 23

Using multiple arguments:

to_fractional_power <-
  function(x, numerator, denominator) {
    power <- numerator / denominator
    x^power
  }
to_fractional_power(27, 1, 3)

[1] 3

Important

The last line of a function must return something, so don’t end a function by assigning results with <-!

“Good enough” functions for targets

• Use a naming convention (verbs are good)
• Make the function arguments the same as target names
• Document!

WORSE:

m1 <- function(x) {
  lm(stem_length ~ watershed, data = x)
}

BETTER:

# Fit linear model to explain stem lenght as a function of watershed treatment
# data_clean = a tibble; the `data_clean` target
fit_model <- function(data_clean) {
  lm(stem_length ~ watershed, data = data_clean)
}

3. Create functions

Exercise

Convert the code in 01-read_wrangle_data.R into a function that takes the file path to the raw data as an argument and returns the cleaned maples data frame.

08:00

Defining the workflow

Steps in the workflow are defined by the tar_target() function inside of the list() at the end of _targets.R

_targets.R

list(
  tar_target(name = file, command = "data/penguins_raw.csv", format = "file"),
  tar_target(name = data, command = get_data(file))
)

• Usually you only need to use the first two arguments, name for the name of the target, and command for what that target does

• Targets that are files (or create files) need the additional argument format = "file" (for files on disk) or format = "url" (for files on the web)

Using format = "file" causes targets to track changes to the file itself. In this example, if you edited the CSV file, both the file and data targets would be invalidated and need to be re-run.

Tip

A common mistake is to leave a trailing comma after the last target. This will result in the error: Error running targets::tar_make() Last error: argument 5 is empty

Naming targets

• Use a naming convention (nouns are good)

• Use concise but descriptive target names

WORSE:

• data1, data2, data3
• histogram_by_site_plot

BETTER:

• data_file, data_raw, data_clean

• plot_hist_site

4. Create Targets

Exercise

Create targets for the input CSV file and the results of your data wrangling function in _targets.R. Remember to use format = "file" in the target for the CSV file.

Check your progress by running tar_visnetwork() and tar_make().

Once you’ve gotten those first two targets working, try creating functions and targets for additional steps in the analysis.

10:00

Debugging targets

• Errors in tar_make() are sometimes uninformative because code is run in a separate R session
• Use tar_meta() to access error messages

tar_meta(fields = error, complete_only = TRUE)

depending on time, you could simulate an error in the read_wrangle_maples() function to demo tar_meta() and workspaces (next slide).

Debugging targets

When a target errors, you can load a “workspace” with all the functions, data, and packages needed to reproduce the error interactively.

Enable this with:

tar_option_set(
  workspace_on_error = TRUE
)

Then, load the workspace with tar_workspace(<NAME OF TARGET>)

#load upstream target `data_clean` and `fit_model()` function into global environment
tar_workspace(linear_model)
#try interactively
fit_model(data_clean)

Error in eval(mf, parent.frame()): object 'df_cleaned' not found

Can you spot the source of the error?

fit_model.R

fit_model <- function(data_clean) {
  lm(y ~ x + z, data = df_cleaned)
}

Alternative workflow definitions

tarchetypes provides alternatives to list() for defining workflow.

tar_plan() allows a name = command() shortcut

_targets.R

tarchetypes::tar_plan(
  tar_file(data_file, "data.csv"),
  data = read.csv(data_file),
  model = fit_model(data),
)

tar_assign() allows the assignment operator (<-) and works well with pipes (%>% or |>).

_targets.R

tarchetypes::tar_assign({
  data_file <- tar_file("data.csv")
  data <-
    read.csv(data_file) |>
    filter(year >= 2020) |>
    tar_target()
  model <-
    lm(y ~ x + z, data = data) |>
    tar_target()
})

Part 4: A Taste of What’s Possible

Bayesian analyses with targets

“target factories” for Bayesian analyses

• Simplify analyses by automatically creating targets for multiple steps

• E.g. defining a target with tar_stan_mcmc() actually generates multiple targets that wrangle data, run the MCMC, create a table of posterior draws, etc.

Geospatial targets

geotargets provides helpers to use geospatial packages like terra and stars with targets

Iteration

• Iterate targets over a list of inputs with dynamic branching—useful for large tasks where it would be cumbersome to write out individual targets

• E.g. fitting model to 100 bootstraps of data

  #creates list of 100 bootstrapped dataframes
  tar_target(
    data_boot,
    purrr::map(1:100, ~sample_frac(data, size = 1, replace = TRUE)),
    iteration = "list"
  ),
  # Fit model to each data frame, save results as a list
  tar_target(
    lm_boot,
    fit_lm_full(data_boot),
    pattern = map(data_boot),
    iteration = "list"
  ),

Use the demo repo to demo this! Show tar_visnetwork() and tar_make() and tar_read(lm_boot, branches = 1)

Parallel computation

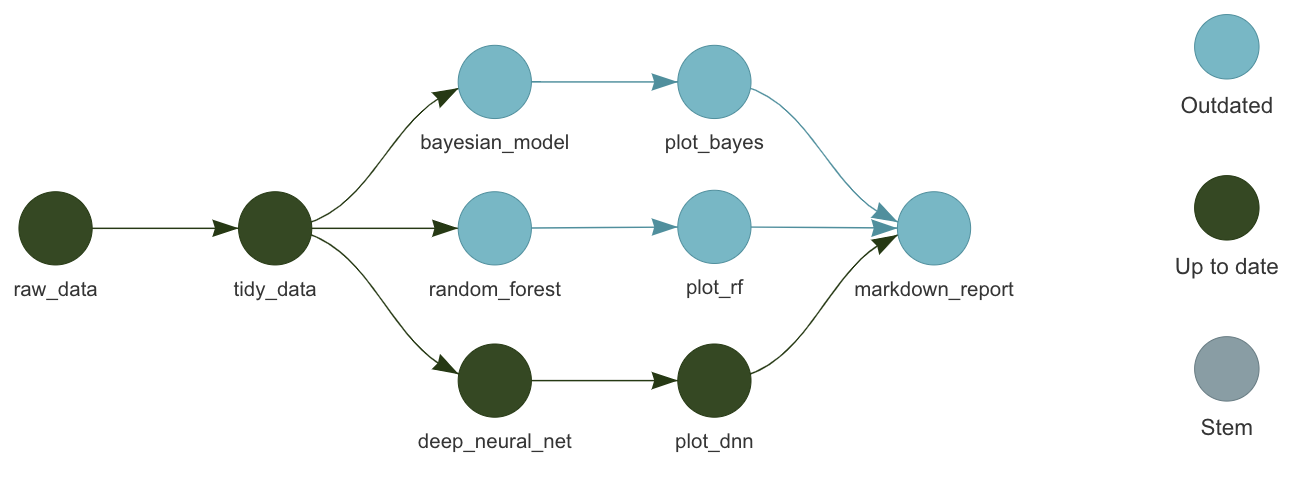

In the workflow below, the three models and the three plot targets can all be run independently at the same time.

• Provide a “controller” created by the crew package to tar_option_set() to run in parallel using multiple workers.

• E.g. to use 3 concurrent R sessions on your computer:

  tar_option_set(
    controller = crew::crew_controller_local(workers = 3)
  )

High Performance Computing

• crew.cluster provides additional “controllers” for HPC including crew_controller_slurm().
• Check out this template repository with code that you can use to run a targets workflow on the UA HPC

Cloud Storage

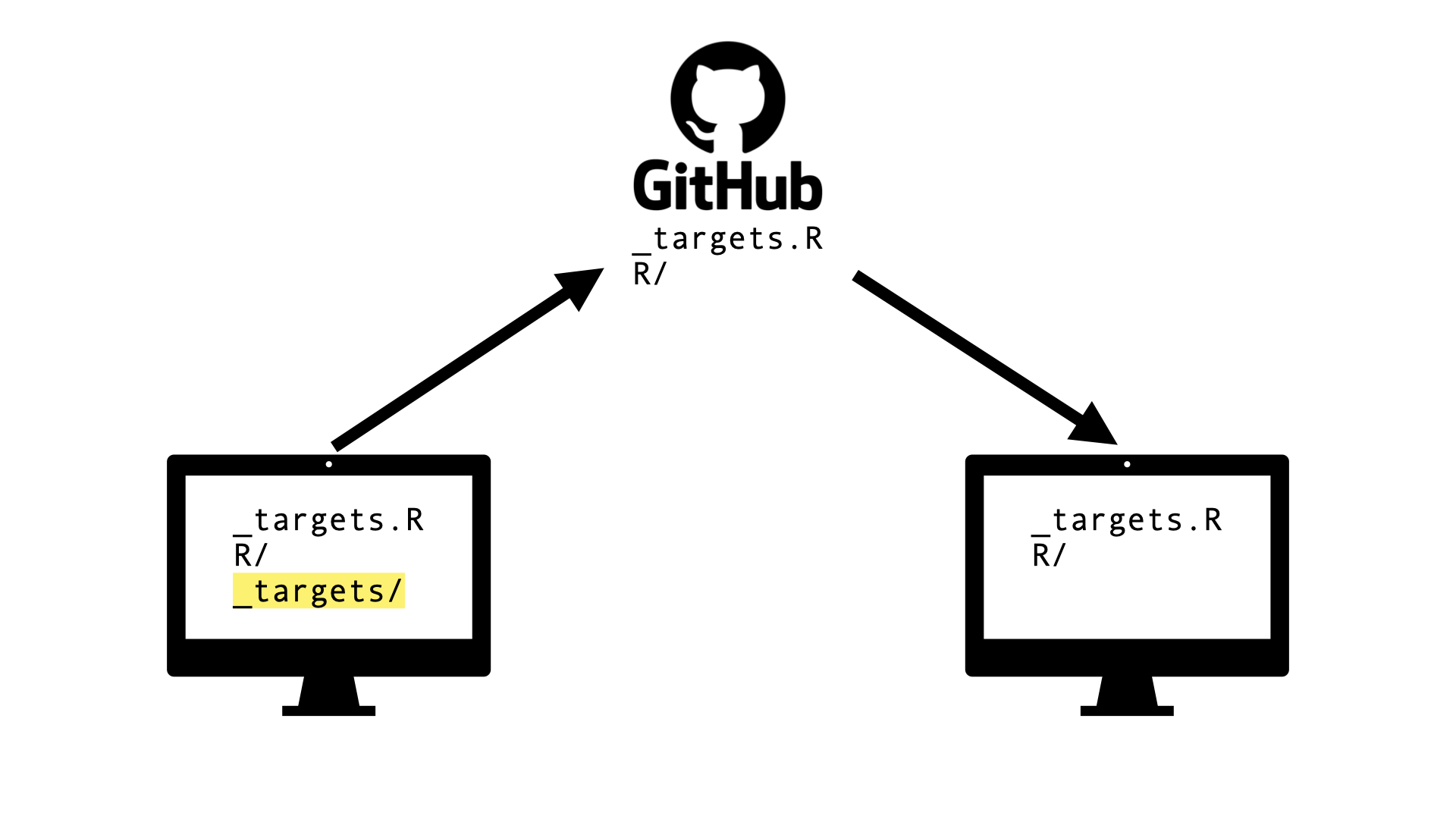

• By default, the _targets/ store is on your computer and not shared with collaborators

• Collaborators will have to run tar_make() to reproduce the workflow, which might not be convenient if some targets take days or weeks to run

• _targets/ folder is by default on your hard drive

• Your collaborator can reproduce the whole workflow from the start with tar_make(), but what if that takes days and all they want to do is make changes at the end of the workflow?

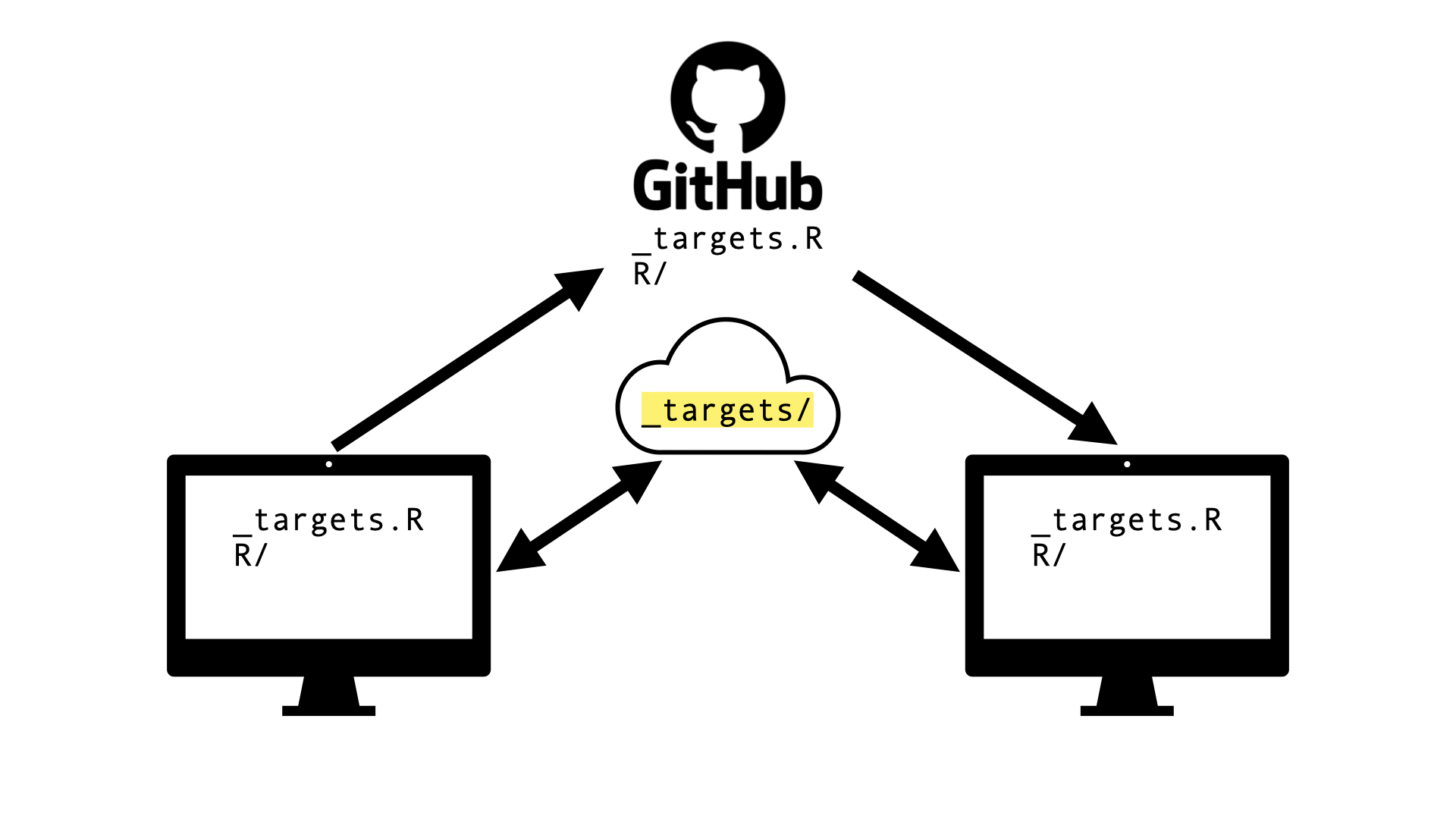

• Solution: store _targets/ in the cloud with Amazon Web Services or Google Cloud

• BONUS: targets stored in this way can be versioned, so if you roll back your _targets.R to a previous version, you don’t have to re-run all the targets.

Cloud Storage

• Optionally, _targets/ can be stored in the cloud (Amazon Web Services or Google Cloud S3 buckets)

• These stores can be versioned, so you can roll back your _targets.R and not have to re-compute targets.

Wrap-up

When to use targets?

Things to consider:

• Are intermediates R objects or files (as opposed to, say, in-place modifications to a database)?

• Benefits of parallelization

• Your collaborators

• Your comfort using targets

Targets in the wild

“Real life” examples of targets workflows:

• https://github.com/usa-npn/cales-thermal-calendars (uses geotargets and crew.cluster to run on UA HPC)
• https://github.com/njtierney/icebreaker (simple example with geotargets)
• https://github.com/ecohealthalliance/mpx-diagnosis (medium complexity)
• https://github.com/idem-lab/map-ir-pipeline/blob/main/_targets.R (uses dynamic branching and other advanced features)

Where to go for help

• targets manual: https://books.ropensci.org/targets/

• targets reference: https://docs.ropensci.org/targets/

• targets discussion board: https://github.com/ropensci/targets/discussions

• CCT Data Science Team drop-in hours every Wednesday afternoon

• Make an appointment with Eric to discuss this content and get troubleshooting help

• Sign up for our mailing list to be notified about future workshops
