Harnessing the Power of HPC From the Comfort of

Eric R. Scott
Univeristy of Arizona

2024-10-17

My Background

• Ecologist → “Scientific Programmer & Educator”

• = my comfort zone ❤️

• Attempted (unsuccessfully) to use HPC as PhD student

• Successfully used HPC as postdoc

As a PhD student I was more motivated than most to get out of my comfort zone when it came to writing code, but even so, I tried to never leave the comfort of the RStudio IDE unless absolutely necessary.

Barriers to HPC use

• Requirement to use shell commands

• Uncomfortable way of editing and running R code

• Not seeing HPC resources as “for me”

Even though I could use shell commands and type R code into the terminal, I didn’t feel comfortable and it was like taking a huge leap backwards.

I had code that could run on my laptop (if I leave it on for a week with the fan at top speed), so is it even worth it to figure out HPC?

I think there are many researchers like me, especially in life sciences.

Technologies to bridge the gap

Key skills that empowered me to use HPC while minimizing time outside of my comfort zone:

1. GitHub

2. renv 📦 for managing R package dependencies

3. Open OnDemand

4. targets 📦

1. GitHub—generally useful to academics, but also a good way to get code onto HPC

2. renv and pak R packages—better package management for R

3. Open OnDemand—RStudio server running on HPC back-end

4. targets—workflow management with extensions to use HPC for parallelization

I’m going to focus on Open OnDemand and targets

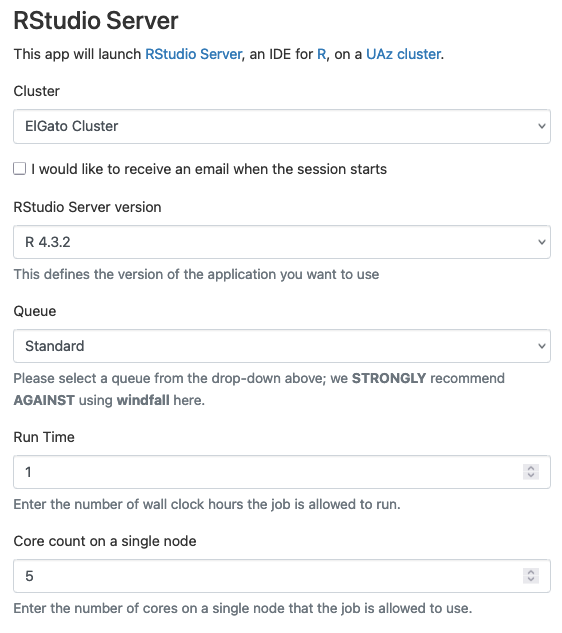

• RStudio IDE¹ in a web browser
• Code run on HPC cores

1. Or Matlab, VSCode, etc.

I can avoid the command line entirely:

• RStudio file pane for upload/download of files

• RStudio git pane for interacting with git/GitHub

• Run parallel R code on HPC cores without SLURM

• Cons: can’t load additional modules (?)

targets

• Make-like workflow management package for R
• Skips computationally-intensive steps that are already up to date
• Orchestrates parallel computing

targets

_targets.R

library(targets)
tar_source()
tar_option_set(packages = c("dplyr", "ggplot2"))
list(
  tar_target(file, "data.csv", format = "file"),
  tar_target(data, read.csv(file)),
  tar_target(model, fit_model(data)),
  tar_target(plot, plot_model(model, data))
)

1

Sources all R scripts in R/ with custom functions fit_model() and plot_model()

2

Define packages needed for pipeline and other options

3

Define pipeline

targets

Visualize pipeline with tar_visnetwork()

targets

Run pipeline with tar_make()

targets::tar_make()

✔ skipped target file
✔ skipped target data
▶ dispatched target model
● completed target model [3.008 seconds, 2.879 kilobytes]
▶ dispatched target plot
● completed target plot [0.101 seconds, 1.081 kilobytes]
▶ ended pipeline [3.779 seconds]

In this example, I’ve made changes to fit_model() and re-run the pipeline. Only that target and targets downstream have to be re-run.

Parallel execution with crew

We can set up a crew controller to run targets in parallel.

_targets.R

library(targets)
tar_source()
tar_option_set(
  packages = c("dplyr", "ggplot2"),
  controller = crew::crew_controller_local(workers = 3)
)
list(
  tar_target(file, "data.csv", format = "file"),
  tar_target(data, read.csv(file)),
  tar_target(model1, fit_model1(data)),
  tar_target(model2, fit_model2(data)),
  tar_target(model3, fit_model3(data))
)

1

This will set up three R sessions that can run tasks in parallel

2

These three targets can all be run in parallel

This “local” controller also works on Open OnDemand!

On the HPC with crew.cluster

Use SLURM (or PBS, SGE, etc.) without writing a bash script!

crew.cluster::crew_controller_slurm(
  workers = 5,
  slurm_partition = "standard",
  slurm_time_minutes = 1200,
  slurm_log_output = "logs/crew_log_%A.out",
  slurm_log_error = "logs/crew_log_%A.err",
  slurm_memory_gigabytes_per_cpu = 5,
  slurm_cpus_per_task = 2,
  script_lines = c(
    "#SBATCH --account kristinariemer",
    "module load R"
  ),
  seconds_idle = 600
)

1

Launches 5 R sessions as SLURM jobs

2

R code that gets translated into SBATCH script

3

Creates semi-transient workers

1. 5 R sessions are launched as SLURM jobs with wall-time of 1200 (in this example)
2. Main process passes data and code to workers as tasks to complete
3. After all tasks are completed (or if a task errors), SLURM jobs are cancelled by the main process.

Template repository

cct-datascience/targets-uahpc

• Links to relevant tutorials for prerequisite skills

• Example targets pipeline

• Uses renv for package management

• Example crew controllers with all required fields set

• Includes run.sh to launch targets::tar_make() as a SLURM job

How we can help bridge the gap

• Collaborative workshops led by HPC RSEs & Domain RSEs

• Offer workshops on using HPC without the command line

• HPC workshops tailored to R/RStudio users

• Create a template repo for using targets on your HPC

Questions?

ericrscott@arizona.edu

@LeafyEricScott@fosstodon.org

Template Repo

Slides

crew technical details

nanonext, R bindings for NNG (Nanomsg Next Gen), which powers…

mirai, a “minimalist async evaluation framework for R”, which powers …

crew, a unifying interface for creating distributed worker launchers

NNG is a “lightweight messaging library”—handles communication between processes

crew is then extended by plugins like crew.cluster() to create worker launchers for cluster computing

Optimizing crew.cluster

• Use semi-transient workers by setting seconds_idle
• Different controllers for different sized tasks
• Avoid serialization overhead by allowing workers to access data store
• Use S3 storage for object store

Skip if short on time:

crew.cluster default is persistent SLURM jobs for workers, but can have them shut down after seconds_idle and then start new workers when needed.

Can create controller groups so that heavier tasks can use SLURM jobs with more cores/RAM

Default is that the main process handles all the data, but you can avoid serialization overhead by telling targets that the workers have access to the data store (should be safe assumption on HPC)
